LM-K102TR |
|
| LINK-MI LM-K102TR PS/2 VGA KVM Extender 200m Over Single Cat5e/6 Cable |
| |

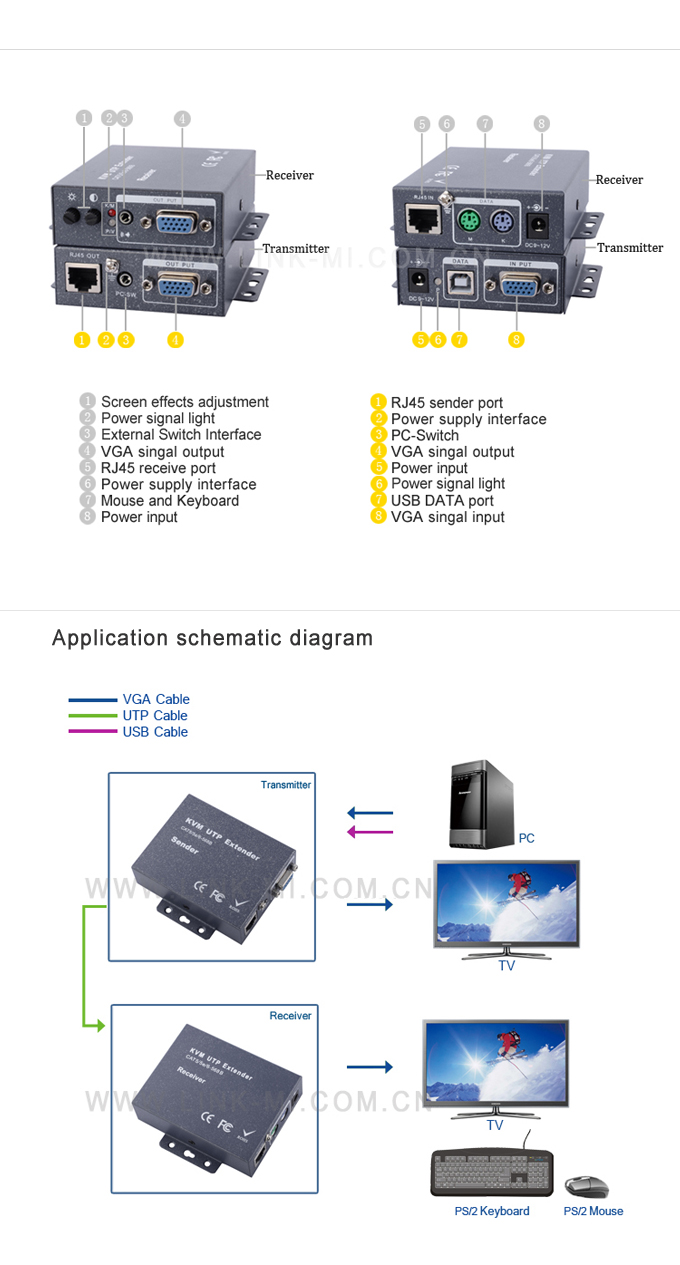

Introduction:
⒈It can extend the power switch of the computer, keyboard, mouse and video port max of 200m2.It can be switched from remote monitor to local monitor or switched from local monitor to remote monitor by the keystroke on the Sender or SCROLL on the local keyboard3.Use the single cable (CAT5,CAT5E,CAT6), the cost is inexpensive4.It supports (USB and PS/2 port) keyboard and mouse, it supports (VGA) port monitor5.It can remove and insert the local and remote keyboard and mouse6.Power on computer use the emulational keyboard and mouse7.It supports DOS, Windows, Linux, Unix system8.It does not need a driver, it is simple to install9.The remote keyboard and mouse display is in real-time10.The anti-jamming is strong11.The anti-lightning and anti-invasion is strong Cascade operation for increasing the distance12.Index of anti-lightning and anti-invasion: withstand air-discharge 15KV, contiguity-discharge 8KV |
|
|
| |
|
|
|
Specification
|
Brand |
LINK-MI |
|
Model No. |
LM-K102TR |
|
Material |
Metal |
|
Color |
Blue |
|
Interface |
VGA Video and PS2 Signal |
|
Application |
Extend VGA Video and PS2 Signal Over single Cat5e/6 Cable up to 200m |
|
Input Connector |
1-ch VGA + 1-ch USB |
|
Output Connector |
1-ch VGA, 2-ch PS2 |
|
Local Output |
HD 15pin VGA |
|
Distance and Resolution |
100m |
200m |
|
1920*1200 |
1920*1080 |
|
Bandwidth |
200m |
500MHz |
|
Input Level Range |
0.5-2.0 Volts P-P |
|
Input Level Error |
Less than 3mV |
|
Input Impedance |
75W |
|
Output Impedance |
75W |
|
Echo Ullage |
-30dB @ 5MHz |
|
Max. DC Compensation |
±5mV-0 |
|
SNR |
60dB |
|
Connector Standard |
HDB15, USB, Mini-DIN6, RJ45, PS2 |
|
Video Standard |
VGA, SVGA, XGA, SXGA, UXGA, LCD |
|
Cable Standard |
CAT5, CAT5E, CAT6 UTP |
|
Power Adapter |
DC 12V 500mA
|
|
Operating Temperature Range |
-25 to +70 Degree Celsius |
|
Deposited Temperature Range |
-40 to +80 Degree Celsius |
|
Relative Humidity |
0 to 95%RH ( No Condensing ) |
|
MTBF |
>30000 hours |
Packing Contents

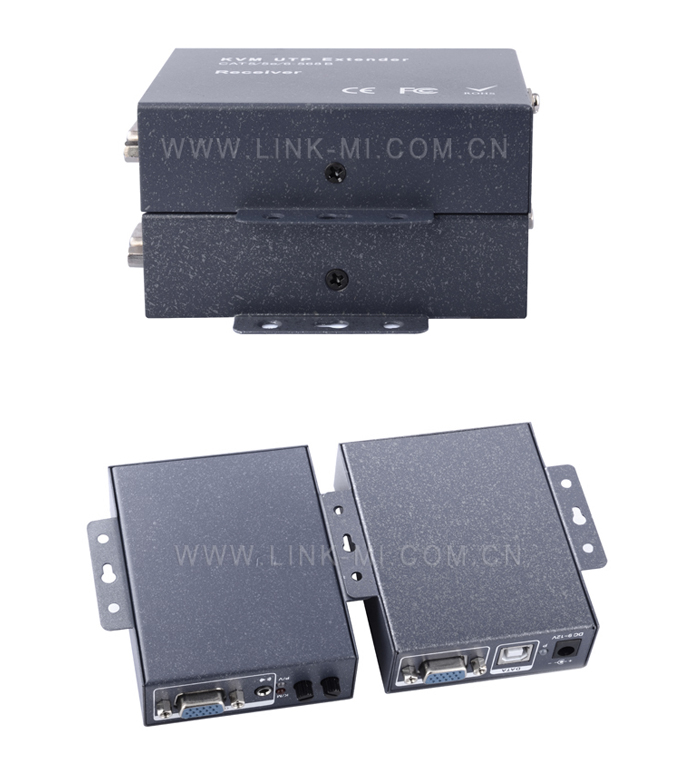

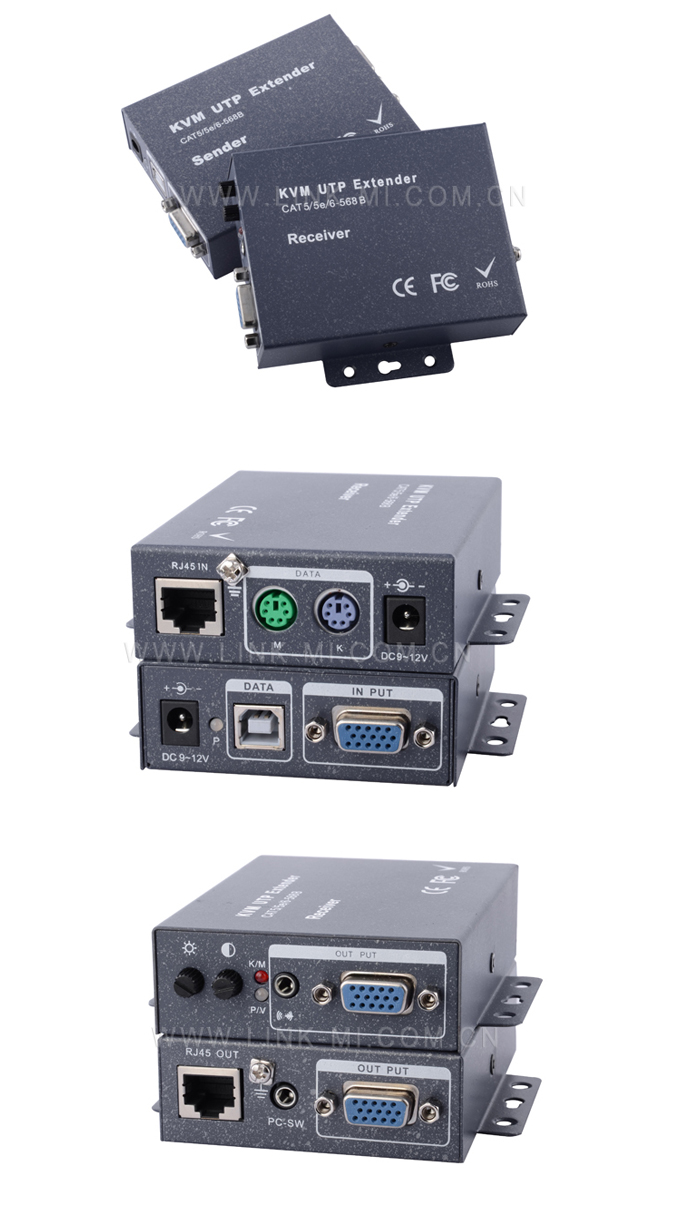

1. Main Unit. KVM Extender Transmitter and Receiver
2. DC 12V 1A Power Adapter
3. USB Cable
4. User Manual
|
 |
|
|
|
|
